Number: 4022 |
|
| |
| Category: |
Combination folding machine |
|
| Manufacturer: |
GUK |
| Model: |
GUK K 52-6 KTL-F4 |
| Built: |
2000 |
| Number: |
428... |
| Size: |
52 cm |
| Status: |
In Stock |
| Test: |
In stock, test run possible |
| Location: |
Germany |
| Availability: |
Immediate |
| | |

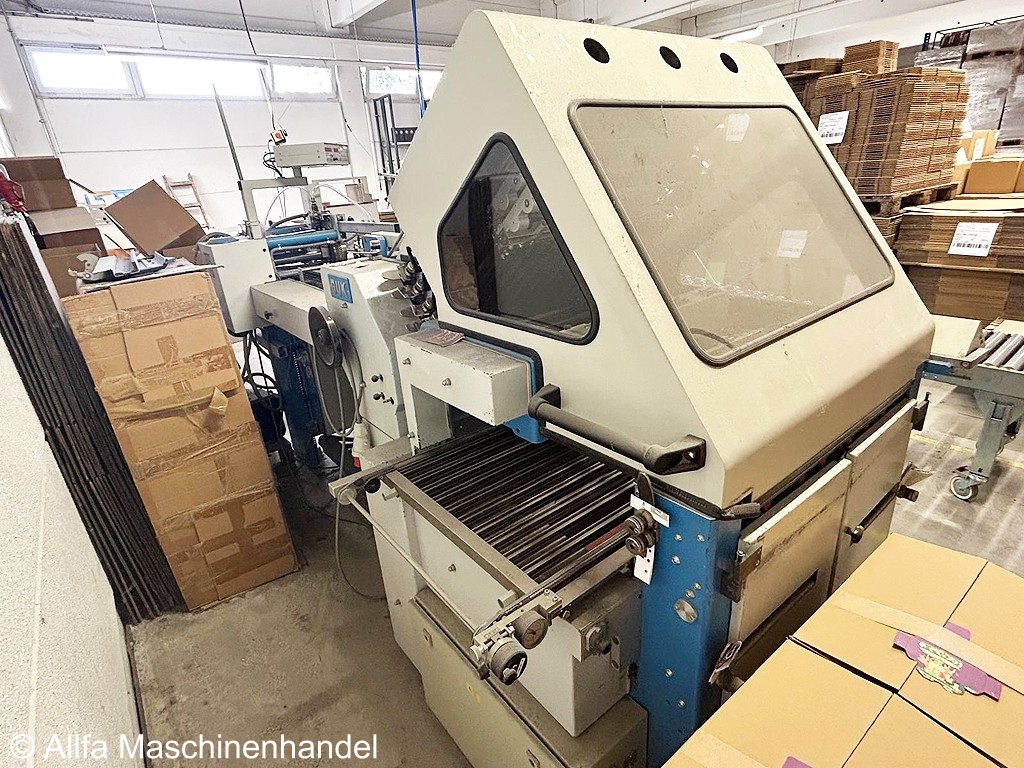

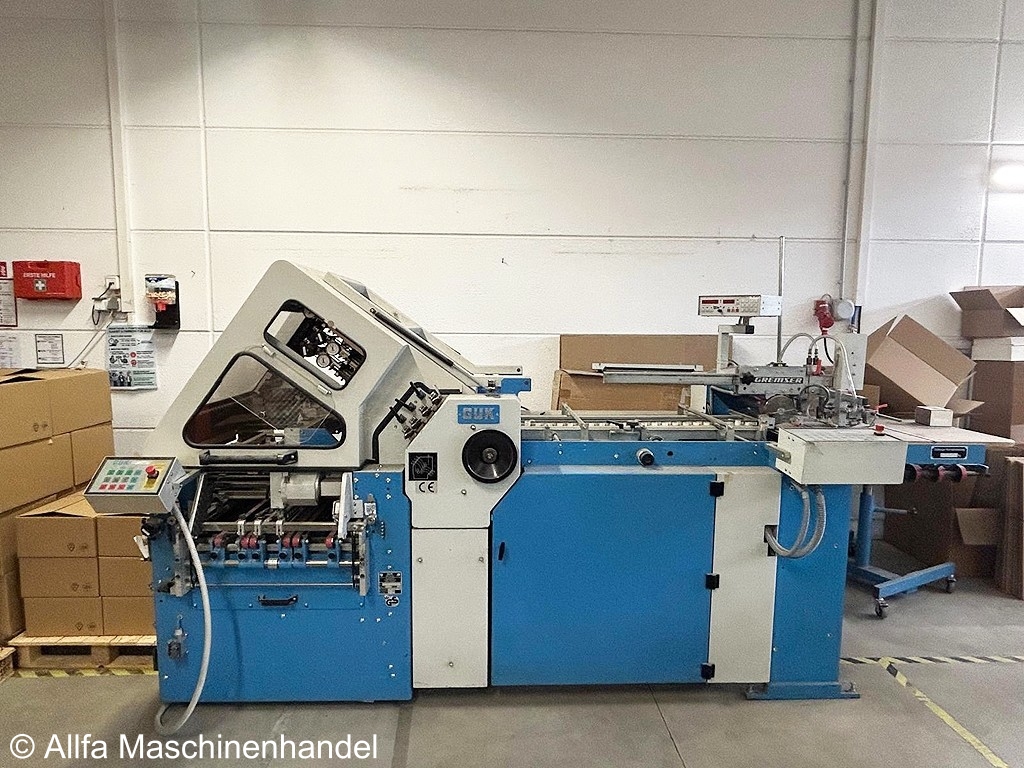

| Machine: | GUK combination folding machine |
| Manufacturer: | - Griesser und Kunzmann GmbH |
| Model: | - GUK K 52-6 KTL-F4 |

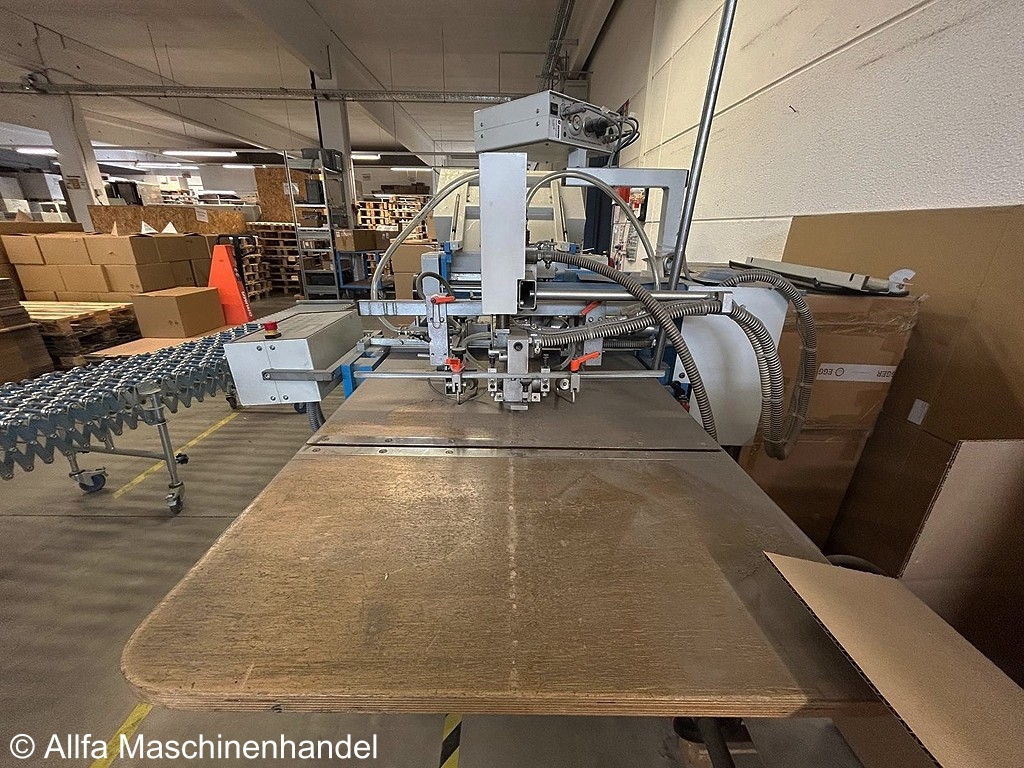

| Feeder: | - Gremser F4 Flat-Pile Feeder with Suction Drum and Sheet Separator |
| Year of manufacture: | June 2010 |
| Format: | - Maximum Sheet Size: 540 X 800 mm (21.26 X 31.50 in) |
| - Minimum Sheet Size: 150 X 210 mm for Parallel Folding |
| - Minimum Sheet Size: 150 X 210 mm for Cross Folding |
| - Minimum Sheet Size: 210 X 300 mm for Third Folding |
| - MCS Preset Counter |

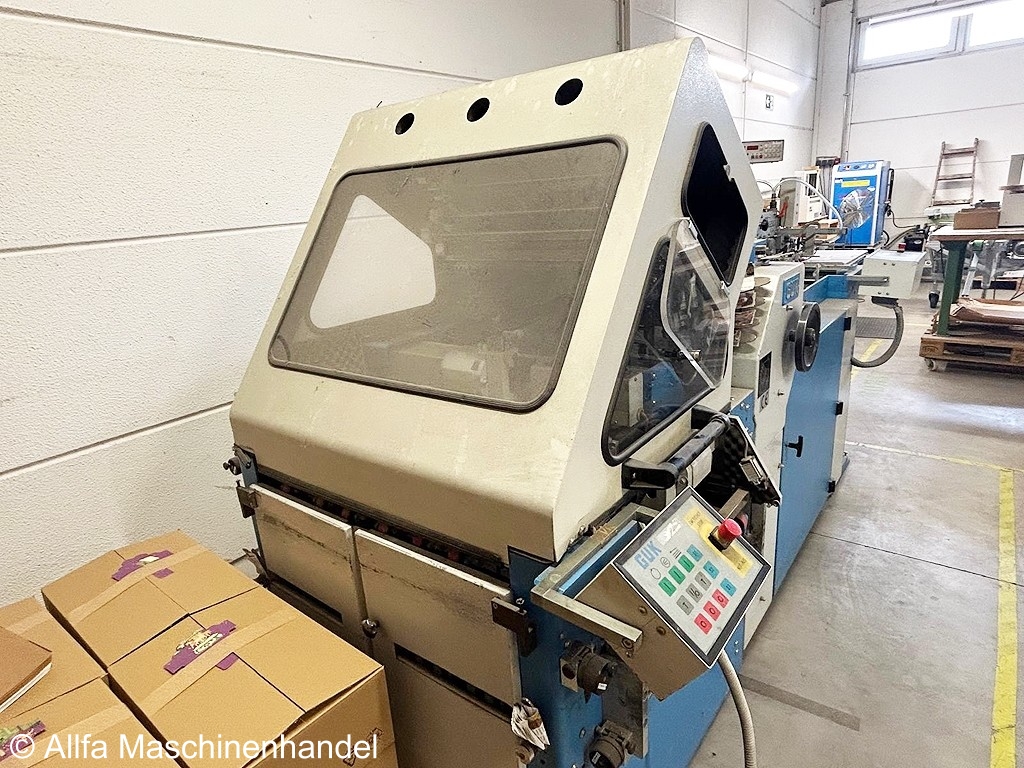

| - Separate Control Panel |
| |

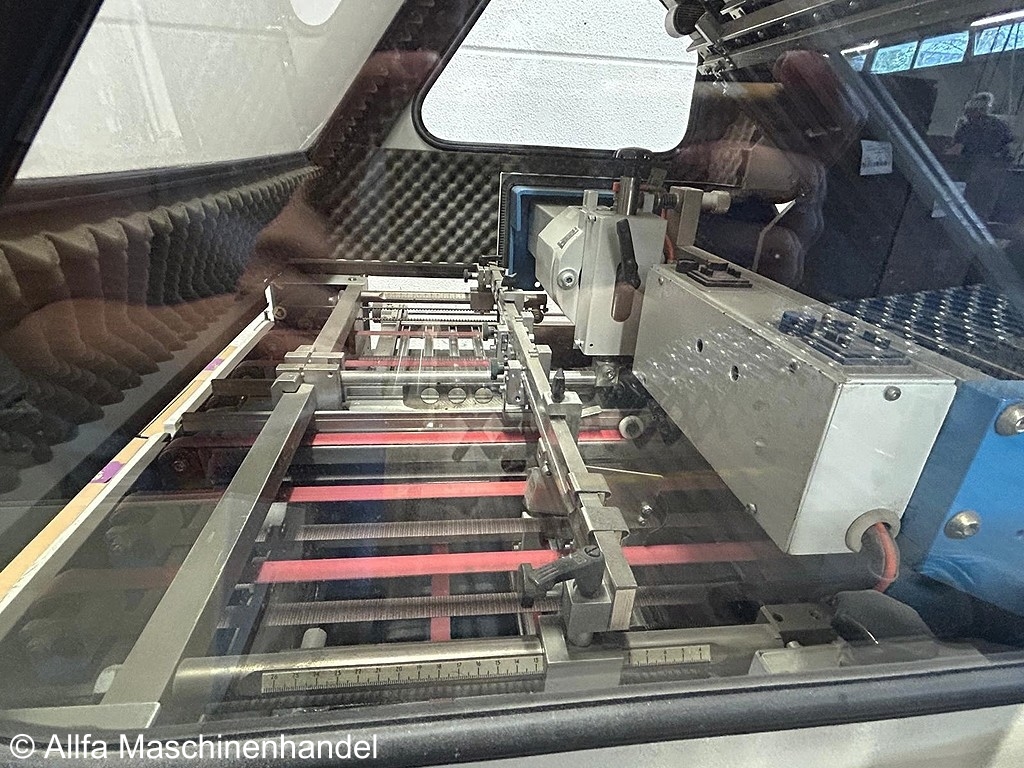

| 1st folding unit: | Parallel Buckle Folding Unit |
| Year of manufacture: | - 2000 |

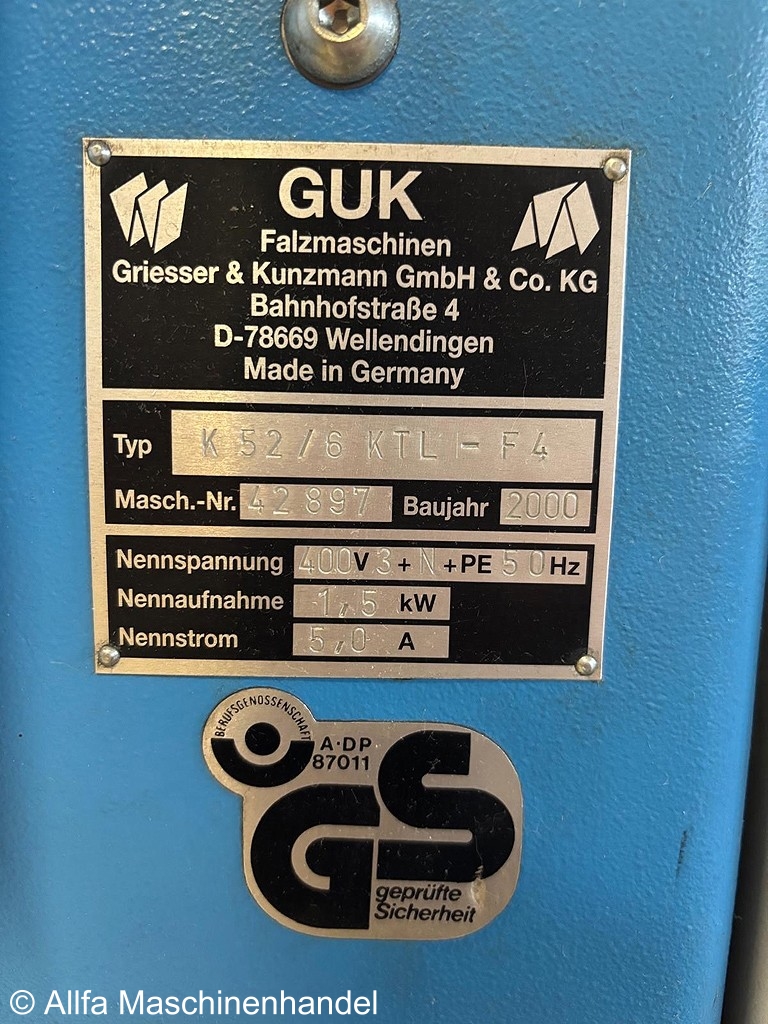

| Machine No.: | - 42897 |
| Equipment: | - 6 Buckle Plates for Parallel Folding |
| - 1 Downstream Slitter Shaft |
| |

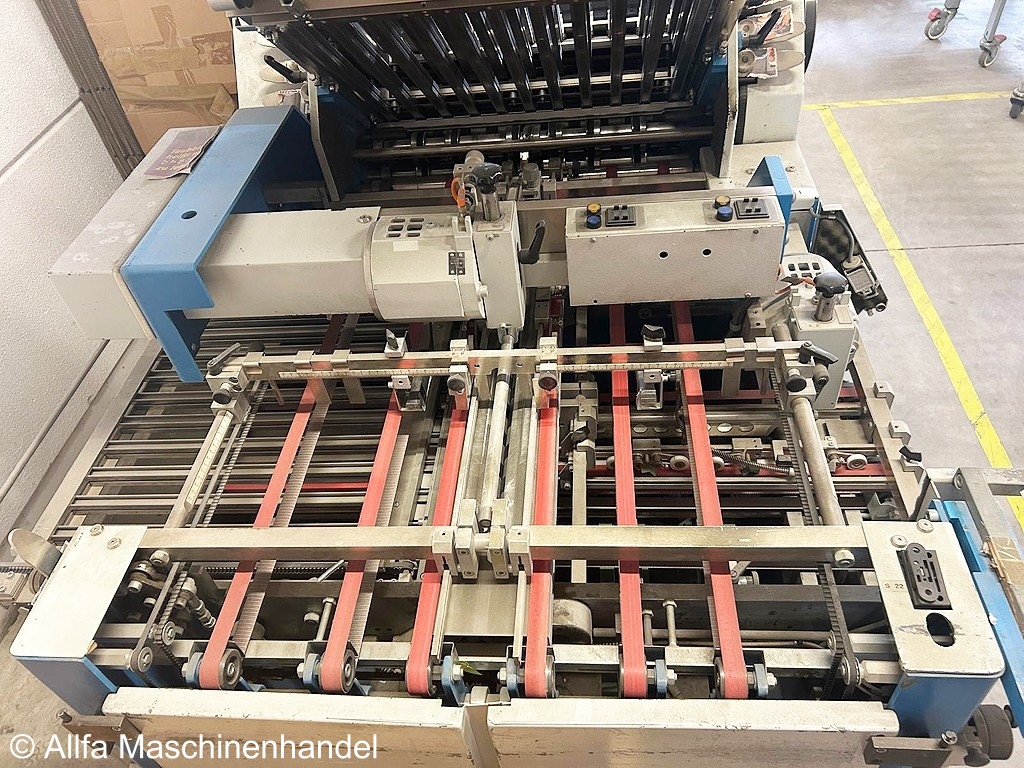

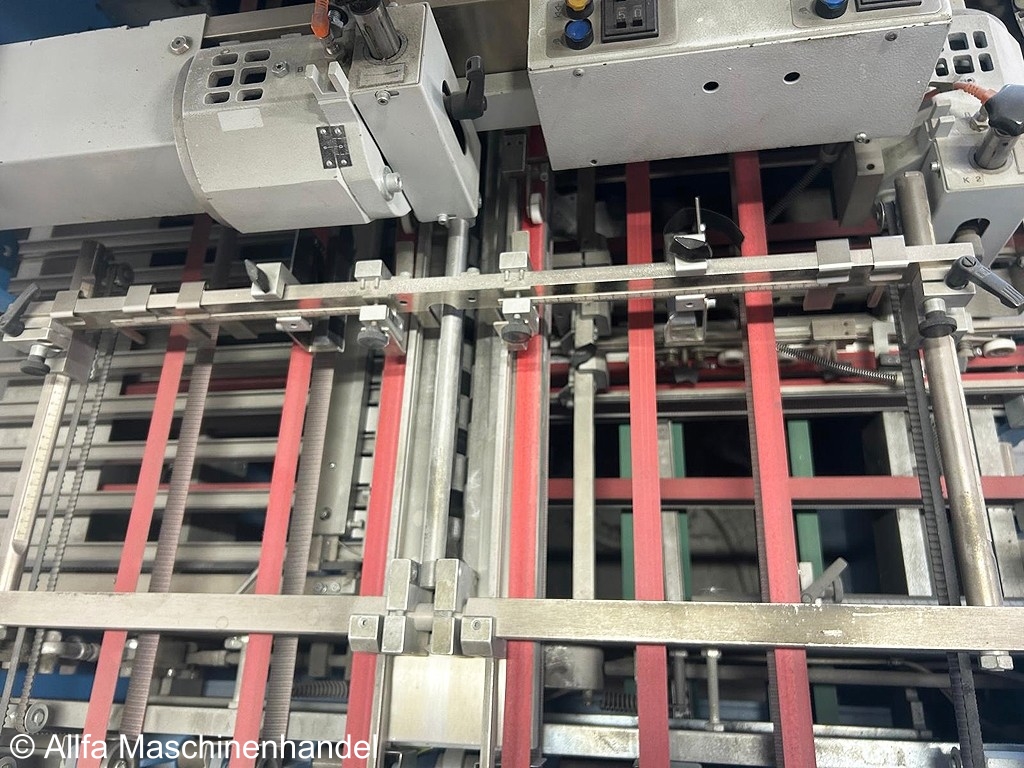

| 2nd folding unit: | Cross-fold unit |
| Equipment: | - 1 fold knife for cross fold |
| |
| 3rd folding unit: | Three-Knife Folding Unit |
| Equipment: | - 1 Folding Knife for Third Fold, Left |
| |

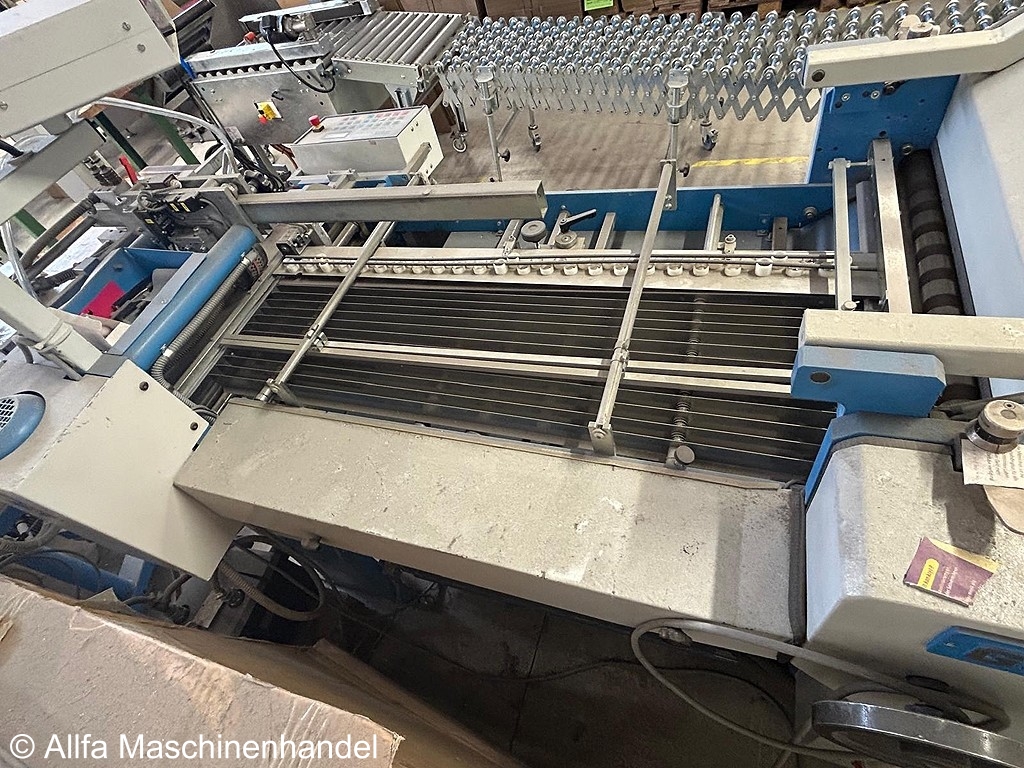

| Delivery: | - Adjustable Delivery for Parallel and Cross Folds |
| |
| Condition: | As is |
| Safety: | Noise Reduction and Safety Equipment |
| Air supply: | Pressure-vacuum compressor |
| Speed: | Parallel Fold up to 40,000/hr, Cross Fold up to 22,000/hr |
| Length: | 3,660 mm |
| Width: | 1,490 mm |
| Height: | 1,680 mm |
| Weight: | 1,300 kg |
| Power supply: | This Machine Is Configured for 400 V, 50 Hz |
| Power input: | 1.5 kW/h |
| Important: | Connection requirements of any power utility note! |
| CE mark: | The machine bears the CE mark |
| Technical Specifications: | Technical Specifications and Illustrations Subject to Change. |
| |
| Price: |
On request |
| (exclude VAT) |
