Number: 4003 |
|
| |
| Category: |
Automatic die-cutting machine |
|
| Manufacturer: |
KAMA |
| Model: |
TS 74-54 |
| Built: |
2006 |
| Number: |
000... |
| Status: |
In production |
| Test: |
Available by prior appointment |
| Location: |
Germany |
| Availability: |
|
| | |

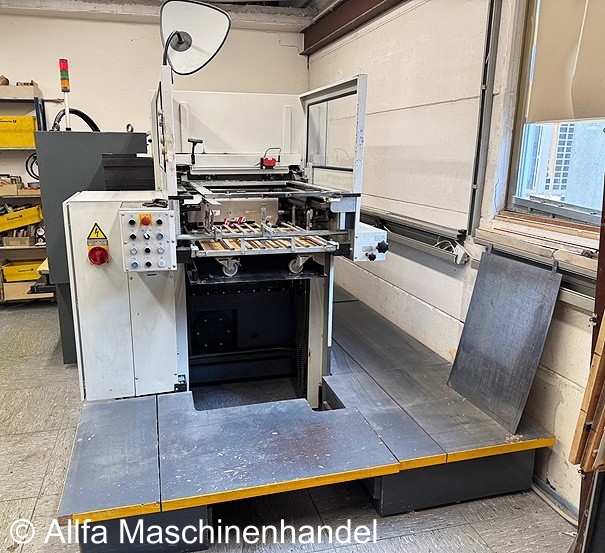

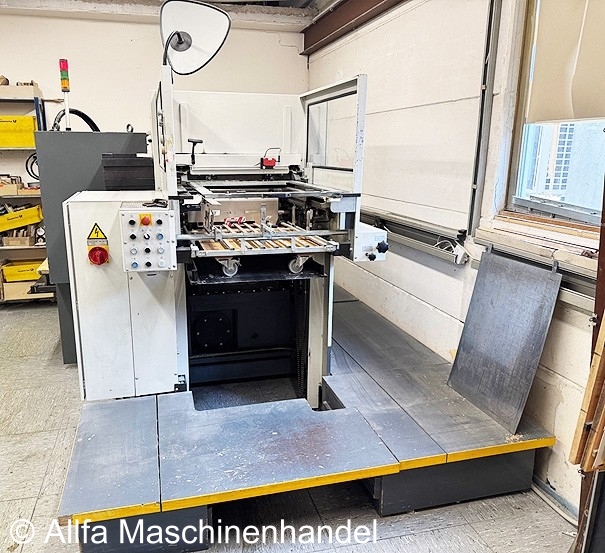

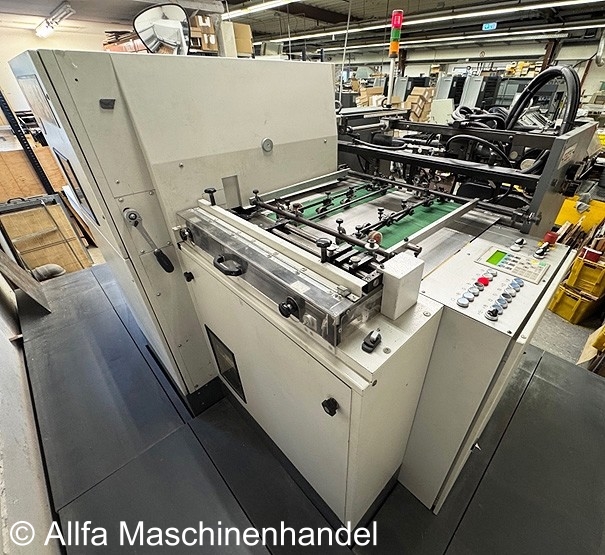

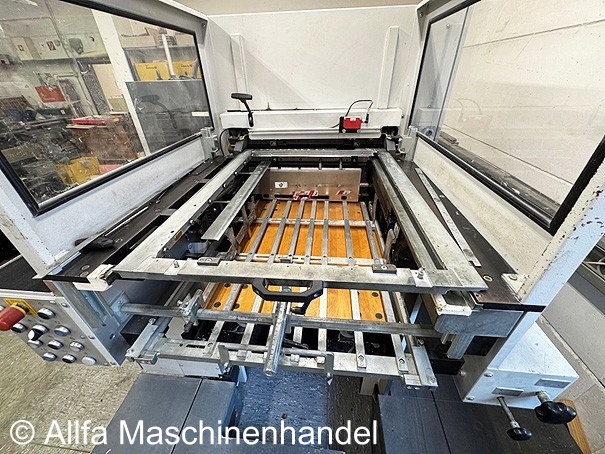

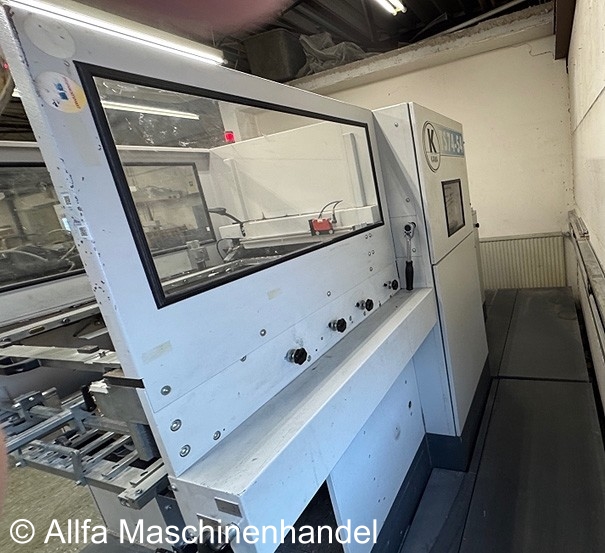

| Machine: | Die-cutting / embossing machine |
| Manufacturer: | - KAMA GmbH |
| Model: | - TS 74 - 54 |
| Sheet size: | Sheet size max 740 x 540 mm |
| - Sheet format min. 279 x 210 mm |
| Cutting strength: | - 165 t |
| Gripper margin: | - 15 mm |
| Feeder: | - Mabeg - stream delivery |
| Material: | - Card or solid board 100 - 1500 g /qm |
| |
| Condition: | As is, in working condition |
| Total counter: | approx. 18 mill. |
| Operation hours: | 6,697 |
| Speed: | 4,500/hr |
| Air supply: | Own air supply |

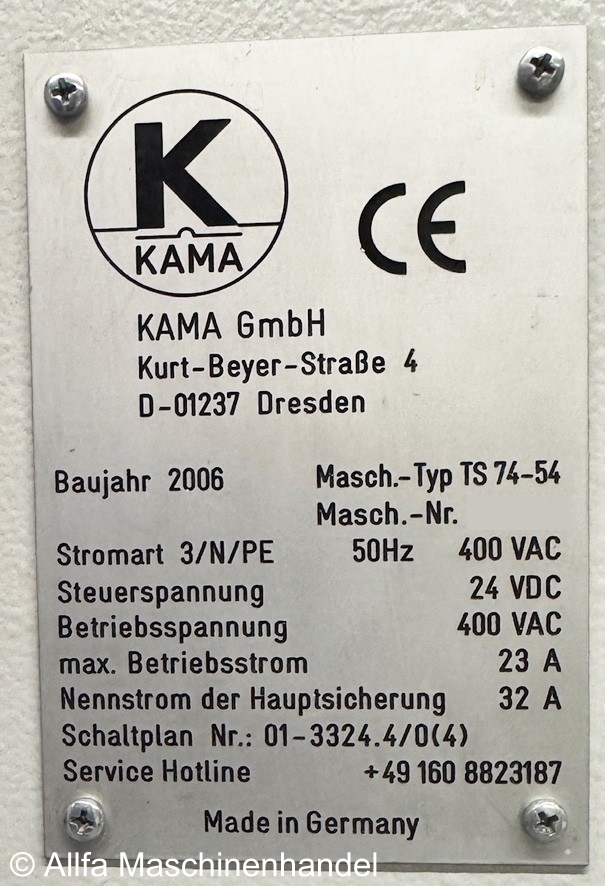

| Power supply: | This machine is connected to 400 / 230 V, 50 / 60 Hz |
| Important: | Observe Your Utility Company's Connection Requirements! |
| CE mark: | The Machine Bears the CE Mark |
| Technical data: | Subject to technical changes and errors regarding the equipment |
| Availability: | Immediately |
| |
| Price: |
On request |
| (exclude VAT) |
