Number: 3990 |
|
| |
| Category: |

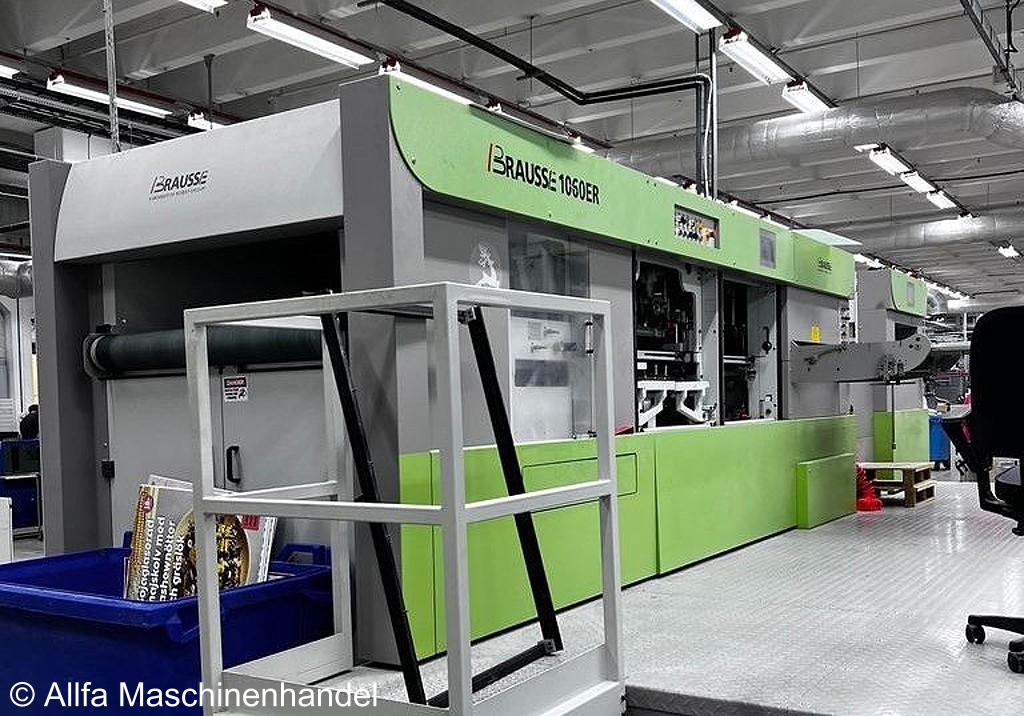

Form punch machine |
|
| Manufacturer: |
Brausse |
| Model: |
Brausse 1060ER Blanking |
| Built: |
2019 |
| Size: |
76,0 x 106,0 cm |
| Impression: |
ca. 5 mio. |
| Status: |
In stock |
| Location: |
German speaking Europe |
| Availability: |
Immediately |
| | |
| Machine: | Form punch machine |
| Model: | - Brausse 1060ER Blanking |
| Type: | - Automatic punching machine |
| Format: | - max. with gripper edge: 1060 x 745 mm |
| - min. 400 x 350 mm |
| Sheet size: | - Maximum sheet size: 1060 x 760 mm |
| - Minimum sheet size: 400 x 350 mm |
| Gripper margin: | - 9 to 17 mm |
| Cutting lines: | - Height of the cutting lines: 23.8 mm |
| Curvature: | - Permissible curvature in the carton: 2 % of the sheet width |
| Convertible: | - Convertible share paper: from 90 g/qm |
| - Convertible cardboard: up to 2000 g/qm |
| - Convertible Corrugated board: up to 4 mm |

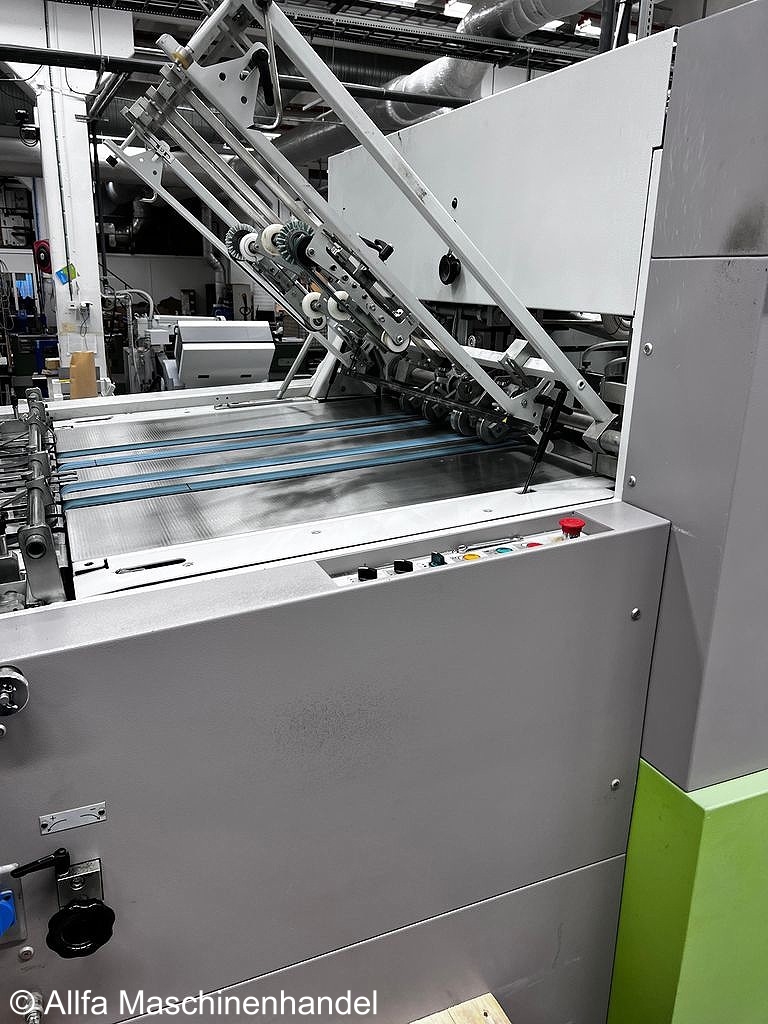

| Feeder: | - Automatic non-stop feeder |
| - Maximum stacking height at the feeder in non-stop mode: 1520 mm |
| - Maximum stack height at the feeder in normal operation: 1800 mm |

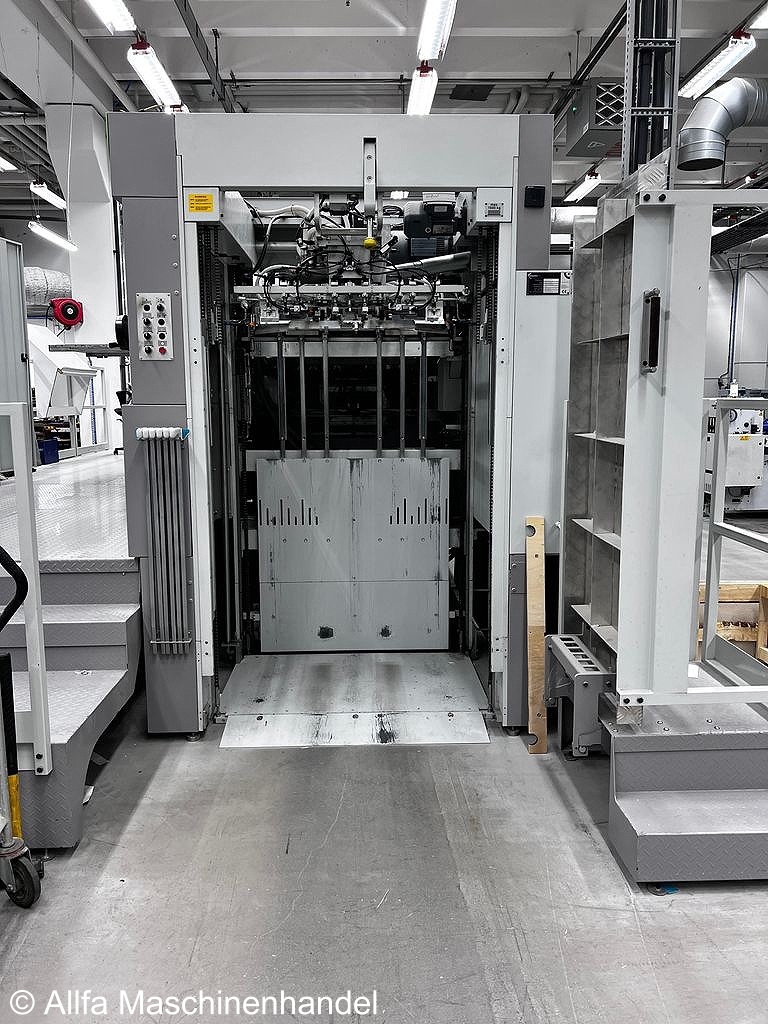

| Delivery: | - Pile delivery station |

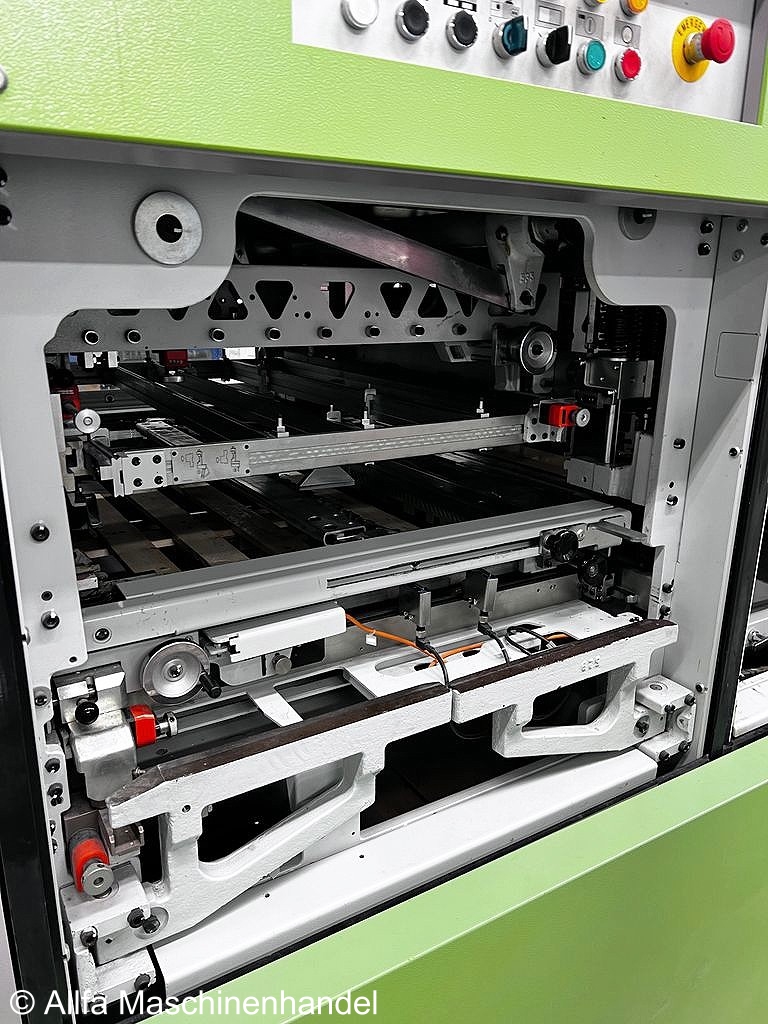

| Equipment: | - Blanking station |
| |
| Condition: | How it stands and goes |
| Operation hours: | 1,300 |
| Speed: | - Speed with blanking 7,500 sh./h |
| Length: | 9,425 mm |
| Width: | 4.530 |
| Height: | 2,640 mm |
| Raise machine: | Raised machine |
| Weight: | ca. 22,000 kg |
| Compressed air: | Compressed air supply: 6 bar, 600 l/min |
| Power supply: | This machine is connected to 400 V, 50 Hz. |
| Power input: | 26 kW |
| Important: | Connection requirements of any power utility note! |
| CE mark: | The machine bears the CE mark |
| |
| Price: |
On request |
| (exclude VAT) |
