Number: 3976 |
|
| |
| Category: |
Thermal Laminator |
|
| Manufacturer: |
D&K |
| Model: |
Jupiter 25 |
| Built: |
2009 |
| Number: |
JP9... |
| Size: |
54,0 x 74,0 cm |
| Status: |
In production |
| Test: |
By prior appointment agreement possible |
| Location: |
German speaking Europe |
| Availability: |
Directly |
| | |

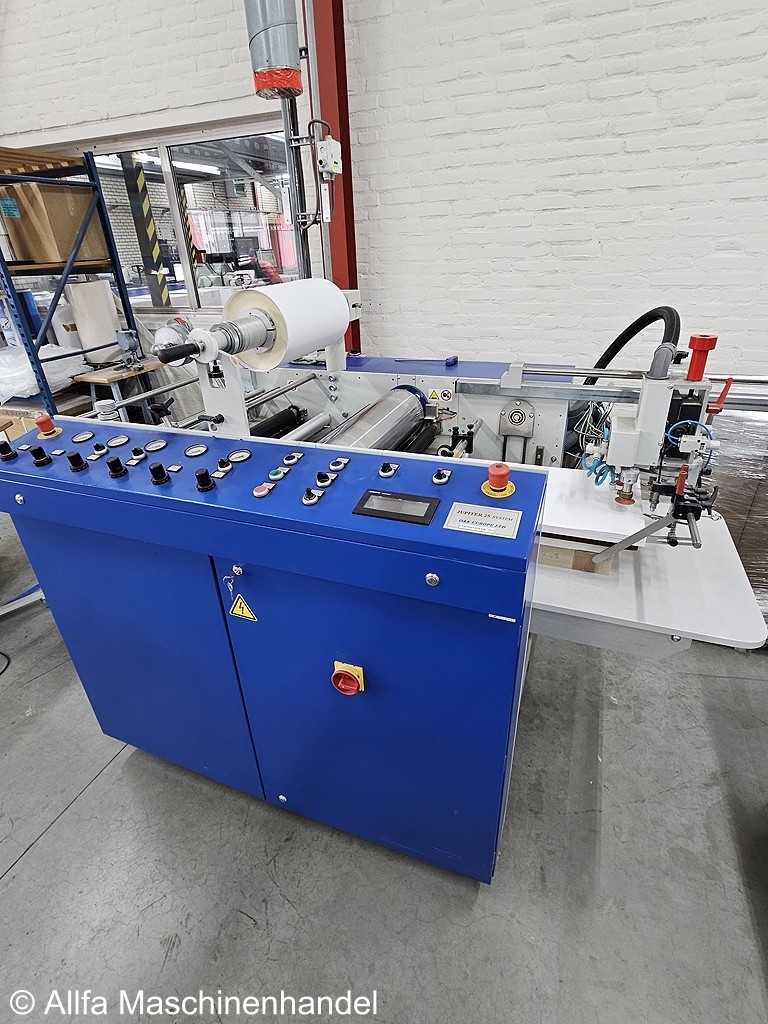

| Machine: | Thermal Laminator |
| Manufacturer: | - D&K |
| Model: | - Jupiter 25 |
| Type: | - Fully automatic compact B2 laminating machine |
| Format: | - max. 540 x 740 mm |
| - min. 205 x 220 mm |
| Material weight: | - 115 - 450 g/qm |
| Control: | - PLC controlled |
| Feeder: | - High stacking feeder with pallet loading |
| Ability: | - Equally adept at running Litho or Digital output |

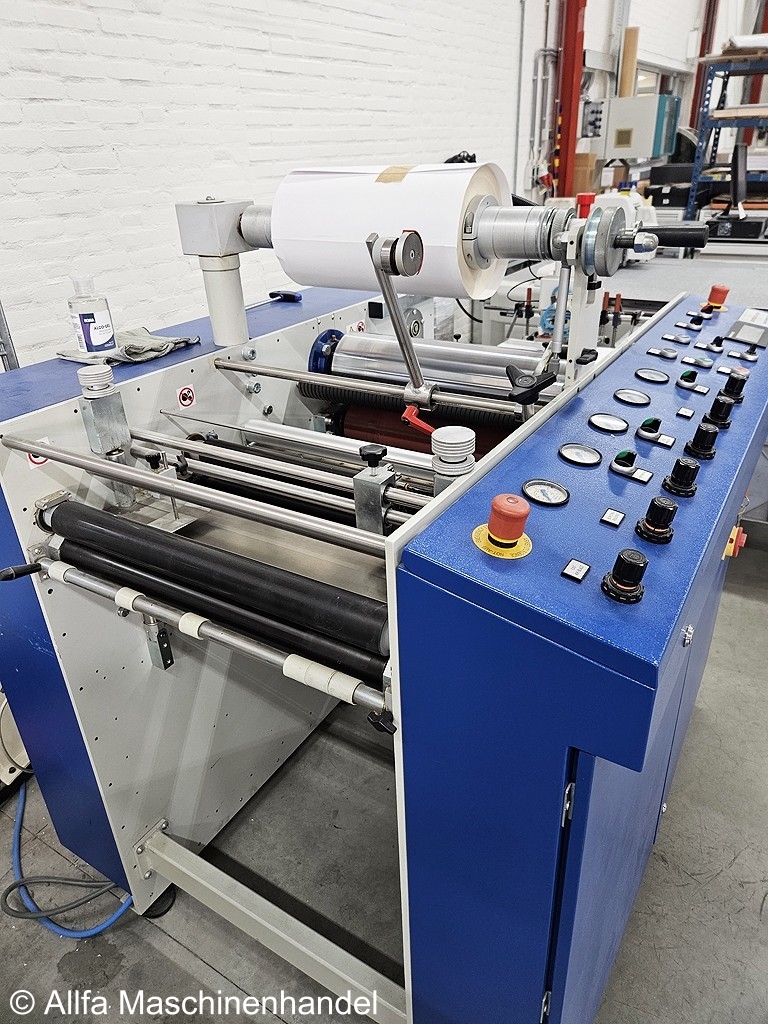

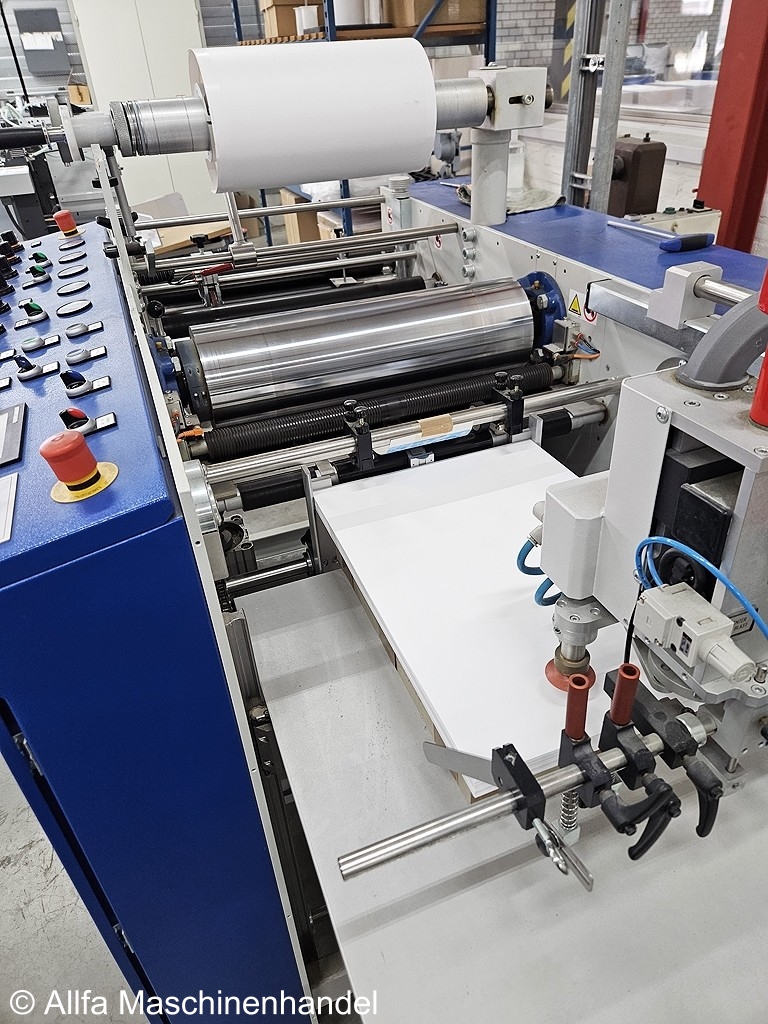

| Equipment: | - Pneumatically controlled scrolled in-feed roller |
| - Heated Chrome top roller |
| - Pneumatically controlled Rubber nip roller |
| - De-curl bar which can be adjusted on the run |
| - Cantilevered Mandrel |
| - Film can be moved laterally on the run |
| - Film slitter for non-standard sizes |
| - Burster type sheet separator |
| Delivery: | - Jogger at delivery |
| Speed: | - 35m/minute, fed on edge, single-sided |
| |
| Air supply: | 1 Vacuum pump |
| - 15 cfm / 100 psi Dry air required by customer |
| Condition: | How it stands and goes |
| Power supply: | This machine is connected to 400 / 230 V, 50 / 60 Hz |
| Important: | Connection requirements of any power utility note! |
| CE mark: | The machine bears the CE mark |
| |
| Price: |
On request |
| (exclude VAT) |
